Reading the Windows Registry with Python: A Case Study Using WinReg

Table of Contents

• Table of Contents
• 1. Introduction
• 2. Background: What is the Windows Registry?
  • Structure of the Windows Registry
• 3. The Problem with Sample Code: Lessons from PEP 514
• 4. Exploring the Registry: Exporting and Analysing Data
  • Example: Analysing Exported Registry Files
  • Example summary of my registry key statistics
• 5. Building a Better Registry Reader in Python
  • Getting Keys and Values
  • Traversing Subkeys via Recursion
  • Printing Results
  • Arguments with ArgParse
  • Issues Found
  • Final Tidy
• 6. Practical Example: Using the Script
  • Command-line Examples
  • Script Examples
    • Example 1
    • Example 2
• 7. Key Takeaways
  • Reading a Registry Value
  • Writing to the Registry
  • Deleting a Registry Key or Value
• 8. Try It Yourself
  • Edits to this Post

1. Introduction

Curiosity often leads to some of the most interesting projects. After reading about PEP 514 in the Astral UV documentation, I discovered that Python installations on Windows are registered in the Windows Registry. Intrigued, I tried the sample code from PEP 514, only to find it lacking. This post documents my journey to build a more robust, flexible Python script for reading Windows Registry values. I hope this will be useful to others.

2. Background: What is the Windows Registry?

The Windows Registry is a hierarchical database that stores configuration settings and options for the operating system and installed applications in the form of Name:Value pairs. For Python developers, it’s especially relevant because Python installations are registered here (as per PEP 514), making it possible to discover and manage multiple Python versions programmatically.

Structure of the Windows Registry

The Windows Registry is similar to a file system. The top-level nodes (hives) are known as root-keys, and each top-level root-key contains subkeys (like folders) and values (like files). The Windows Registry is not case-sensitive.

  graph TD
    A[HKEY_CLASSES_ROOT]
    B[HKEY_CURRENT_USER]
    C[HKEY_LOCAL_MACHINE]
    D[HKEY_USERS]
    E[HKEY_CURRENT_CONFIG]
    F[Subkeys & Values]

    A --> F
    B --> F
    C --> F
    D --> F
    E --> F

A path is made from a root key, keys, subkeys, and values. For example:

Hive (root key): HKEY_CURRENT_USER
└── Key: Software
    └── Subkey: Python
        └── Subkey: Astral
            └── Subkey: CPython3.13.5
                └── Value: InstallPath

• A key (or subkey) is like a folder—it can contain additional subkeys and values.
  • CPython3.13.5 is a subkey. It can contain more subkeys (like InstallPath) and/or values (like Default, ExecutablePath, etc.).
• A value is a Name:Value pair stored inside a key. It does not contain further subkeys or values.
  • InstallPath can be either a subkey (if it contains more subkeys/values) or a value (if it is just a Name:Value pair).

The term “hive” is often used in documentation for the Windows Registry and appears to be specific to Windows, used by Microsoft to describe the files and top-level sections of the registry.

3. The Problem with Sample Code: Lessons from PEP 514

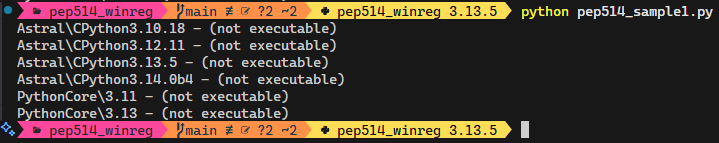

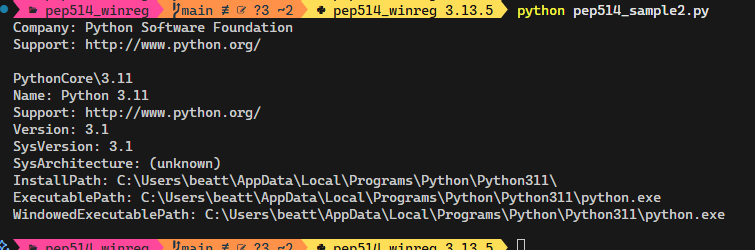

When I first tried the two blocks of sample code from PEP 514, I expected it to work out of the box. Instead, it returned incomplete or misleading results:

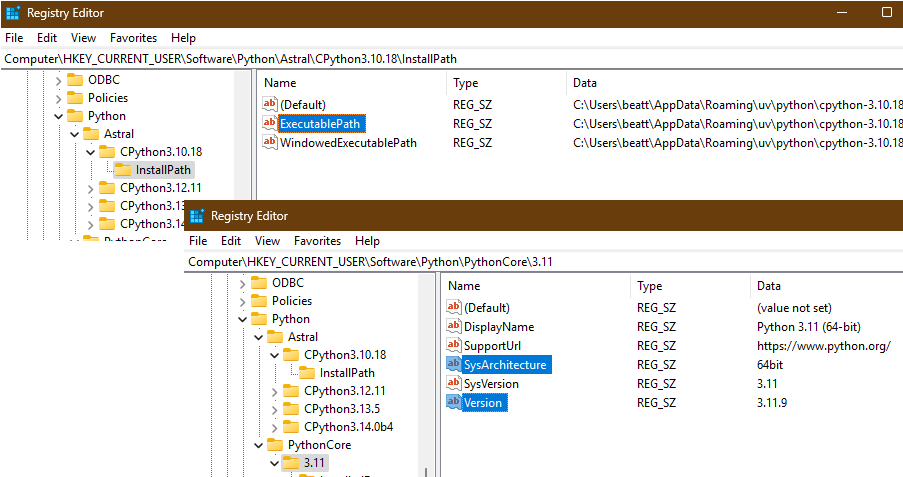

From looking at the Windows RegEdit application I knew this code was not reporting the correct values.

Reading the Python WinReg module documentation, we can get the code samples working by replacing the winreg.QueryValue() function call with the recommended winreg.QueryValueEx() function call and unpacking the returned value. This now gives:

That simple change, and removing the access mask to open the key (sample #1 only), has gotten us further. The fields are now looking better for those handled.

The Modified PEP 514 Sample Code is on my GitHub.

I can see there is still more information we can access for the Python entries not handled by the sample code though.

4. Exploring the Registry: Exporting and Analysing Data

To better understand the registry’s structure, I exported sections of it using the Windows regedit.exe application and analysed the resulting files in the REPL. This helped me see the variety of data types and key/value patterns present.

The regedit.exe application does not allow you to export (dump) the whole registry as a single text file. You have to export the registry piecemeal, which in itself is a bit of a warning sign that there is a lot of data.

For my system, there can be a large number of keys to traverse depending on the root HKEY chosen:

I’m not seeking much, just some idea of what is present. The following code is an example of what was run in the REPL as I was exploring the data, but it is runnable as a script on my GitHub. Python is capable of handling all these files simultaneously:

Example: Analysing Exported Registry Files

# file_analyse.py
import fileinput
from pprint import pprint

tuple_of_files = (
    "regdump_HKEY_CLASSES_ROOT.txt",
    "regdump_HKEY_CURRENT_CONFIG.txt",
    "regdump_HKEY_CURRENT_USER.txt",
    "regdump_HKEY_LOCAL_MACHINE.txt",
    "regdump_HKEY_USERS.txt",
)
# Registry files exported via regedit are typically encoded in UTF-16
# Some 'locale' characters will not be compatible with UTF-8
with fileinput.input(files=tuple_of_files, encoding="utf-16") as fid:
    data = list(fid)

# What Can we find out about Keys
keynames = []
for this_line in data:
    if this_line.startswith("Key Name:"):
        # Note: Keys may contain whitespace
        keynames.append(this_line.split("Key Name:")[1].strip())
print(f"Key Count: {len(keynames)}\n")
pprint(keynames[:12])  # Print 1st 12
# It is likely that the longest and deepest key-paths are the same..
longest_path = max(keynames, key=len)
print(f"\nLongest key-path is {len(longest_path)} characters.")
print(f"With {len(longest_path.split('\\'))} keys in it:\n")
print(longest_path)  # The actual key-path

deepest_path = max(keynames, key=lambda x: len(x.split("\\")))
print(f"\nDeepest key-path is {len(deepest_path)} characters.")
print(f"With {len(deepest_path.split('\\'))} keys in it:\n")
print(deepest_path)  # The actual key-path

# As anticipated, Key Names are like paths
# i.e., the path is made up of keys and subkeys
... # additional code is available on GitHub

Example summary of my registry key statistics

Line Count: 11000955
Lines Blank: 2017686
...which accounts for 18.34% of all lines
...removed blank lines, which has reduced line count by 18.34%
Updated Line Count: 8983269
Key Count: 785437
Longest key-path is 407 characters.
With 28 keys in it
Deepest key-path is 407 characters.
Duplicate Keys = False

HKEYS listed:
{'HKEY_CLASSES_ROOT', 'HKEY_CURRENT_CONFIG' 'HKEY_CURRENT_USER', 'HKEY_LOCAL_MACHINE', 'HKEY_USERS'}

Types found:
{'REG_BINARY', 'REG_DWORD', 'REG_EXPAND_SZ', 'REG_FULL_RESOURCE_DESCRIPTOR',
 'REG_MULTI_SZ', 'REG_NONE', 'REG_QWORD', 'REG_RESOURCE_LIST',
 'REG_RESOURCE_REQUIREMENTS_LIST', 'REG_SZ', 'REG_UNKNOWN'}

The most common Class Name entries (Name, Count):
[('<NO CLASS>\n', 783641), ('REG_SZ\n', 1090), ('Shell\n', 694),
 ('Network ComputerName\n', 2), ('1aa506ff\n', 2), ('adda2636\n', 2),
 ('5c15e5ed\n', 2), ('2c356ba6\n', 2), ('DynDRootClass\n', 2)]

There are a large number of keys (>780,000) and the longest key-path is substantial (28 keys or 407 characters). There is one value Type not defined in the Python WinReg module, which is REG_UNKNOWN. This occurs when the Type is an undefined hexadecimal value. We can either print the hex value or follow suit and use REG_UNKNOWN.

Class Name entries appear in the exported text files, but not in the RegEdit application itself. I think this is the RegEdit exporter being clever by cross-referencing the Class, ClassID and ClassGuid ‘Name’ entries defined elsewhere in the registry.
Update: I have subsequently confirmed that ‘Class Name’ entries cannot be accessed in the registry using the Python WinReg module, and therefore it is safe to ignore these.

This post focuses on 64-bit Windows; accessing 32-bit applications is not covered. You may need to investigate further if you have to worry about 32-bit access – see Accessing an Alternate Registry View for more information.

The simplest Python WinReg code I could write to read a value:

import winreg

key_handle = winreg.OpenKeyEx(
    winreg.HKEY_CURRENT_USER,        # Root key
    "Software\\Python\\PythonCore",  # Subkey
    access=winreg.KEY_READ,          # Default is KEY_READ
)

# Read known named value for the given subkey
# Ignore value_type, we do nothing with it
value, value_type = winreg.QueryValueEx(key_handle, "DisplayName",)
print(f"SubKey value: DisplayName='{value}'")

# "key_handle" object closed automatically when the object is destroyed
# Alternatively use "winreg.CloseKey()", or better still a Context Manager

There is a winreg.QueryInfoKey() function that returns the number of sub-keys and number of values for the passed key-path. You could then read each value (in a for-loop) with the winreg.QueryValueEx() function.

Alternatively there is the preferred winreg.EnumKey() and winreg.EnumValue() functions that retrieve the name/value of one subkey each time they are called. These are typically called repeatedly until an OSError exception is raised, indicating no more values are available.

The latter is preferable for traversing a key-path.

5. Building a Better Registry Reader in Python

I set out to write a script that could:

• Read any registry key or value, not just Python-related ones.
• Traverse subkeys recursively.
• Handle errors gracefully - somewhat.
• Be easily extended for new use cases.

Let us define some design caveats first:

• We will only be connecting locally, otherwise see winreg.ConnectRegistry().
• Read-Only; I don’t want to write to the Registry (Danger!).
• 64-bit only.
• Print results to the console only; can redirect to file on the console if needed.
• Use the REG_UNKNOWN type for undefined type values.
• Command Line (CLI) use, but also programmatically callable.
• One root-key at a time on CLI; can programmatically call more if needed.
• Allow specific subkeys to be ignored - this helps overcome permission issues and errors in the registry.

All the source code is available in the GitHub Repository: winreg_read.

Getting Keys and Values

I appreciate the sample code’s use of yield. However, I am not keen on using a counter, so recursion was considered instead:

# DO NOT DO THIS
def get_keys(hkey, path, index=0):
    try:
        yield winreg.EnumKey(winreg.OpenKey(hkey, path), index)
        yield from get_keys(hkey, path, index+1)
    except OSError as err:
        pass

However, this was a bad idea, as this approach resulted in a RecursionError.

What I did not realise was that Python has a recursion limit (sys.getrecursionlimit()), and using recursion in the Keys and Values functions meant we exceeded that limit (RecursionError exception), even for moderately-short traversals. Although the recursion limit can be changed (sys.setrecursionlimit(n)), I preferred not to do so and reverted to the counter method.
This was also the time I became concerned about key handles leaking for deep traversals.

The code may be less Pythonic, but it is likely clearer with the counter method.

# USE THIS for get_keys() and get_values()
def get_keys(hkey, path):
    """Yield all subkey names under the given HKey and sub-key path."""
    try:
        # Explicitly close handles, otherwise risk of leaks for large traversals
        with winreg.OpenKey(hkey, path) as key:
            index = 0
            while True:
                try:
                    yield winreg.EnumKey(key, index)
                    index += 1
                except OSError:  # Expected when no more keys to yield
                    break

    except FileNotFoundError as err:
        msg = f"\n{path} is not a valid path"
        raise FileNotFoundError(msg) from err
    except PermissionError as err:
        print(f"{err}: Permission Error: you may need to run the script as Admin.")

We’ve added some exception protection for invalid paths, and some of the Registry may not be accessible to the user.

Traversing Subkeys via Recursion

The desired process is as follows:

  flowchart TD
    A[1: Function Entry - Traverse Key-Path] --> B[2: Get Values for Key-Path]
    B --> C{3: For each Subkey in get_keys}
    C -- No more Subkeys --> CC[4: Continue]
    C-- For each Subkey -->D[5: Build Subkey-Path]
    D--> E[6: Get Values for Subkey-Path]
    E --> F{7: For each Sub-Subkey-Path in get_keys}
    F -- No more Sub-Subkeys --> FF[8: Continue]
    F -- For each Sub-Subkey --> G[9: Build Sub-Subkey-Path]
    G --> H[10: Recursive call: Traverse Sub-Subkey-Path]
    H --> A

Printing Results

The focus is on printing to the console. The exported text files from the RegEdit application are similar to the desired output, with minor adjustments:

Full_Path\Copyable_for_RegEdit
    TYPE      NAME      VALUE

Full_Path\Copyable_for_RegEdit\Plus_Subkey
    TYPE      NAME      VALUE

...and so on...

Some paths can be very long (over 400 characters on my system); an empty line between paths helps to identify blocks of subkey values when the console wraps these multi-key paths.

You can redirect the console output to a file and remove line-wrap in your editor if the wrapping bothers you.

Constants can be set for the TYPE-NAME-VALUE column spacing.

Arguments with ArgParse

ArgParse is quick, simple, and sufficient for our needs. It can be extended as required:

usage: winreg_read.py [-h] [-e [EXCLUDE ...]] HKey Key-Path

Traverse Windows Registry and Print the Values

positional arguments:
  HKey                  Enter HKey, e.g. 'HKEY_CURRENT_USER'
  Key-Path              Subkey-Path to traverse from,
                        e.g. 'Software\python'

options:
  -h, --help            show this help message and exit
  -e, --exclude [EXCLUDE ...]
                        List of Key-Paths to exclude from being traversed,
                        i.e., ignored. Expected to be '-e 'path1' 'pathn'

Issues Found

• Non-CONSTANT Type Values:
  Some Type entries are numbers and not one of the Type constants. For those I use the REG_UNKNOWN type.

• Forward Slash in Key Name:
  I wanted to normalise slashes from the user, using something like os.path.join(*path.title().replace(r"/", "\\").split("\\")). But, at least one key in my Windows registry has forward slashes in it, and for the Windows registry you cannot have backslashes in a key name, e.g.
  HKEY_CURRENT_USER\Software\Classes\AppUserModelId\C:/ProgramData/ASUS/AsusSurvey/AsusSurvey.exe
  The key is C:/ProgramData/ASUS/AsusSurvey/AsusSurvey.exe.
  So instead, depend on the user knowing what they are doing [sic].

• Non-Standard Characters:
  There are some locale names that threw a UnicodeDecodeError. I guess they did not match my console locale setting. Best to change your console default. For PowerShell, chcp 65001 (UTF-8) worked for me…or just don’t traverse those keys.

• Permission errors:
  When you open the RegEdit application it opens in Admin mode. There may be some keys you will need Admin permission to access. I catch and continue for those, but you may need to run the script as admin to access all the keys.

• Windows Registry Errors:
  There are some entries in my Windows registry that do not work, even in the RegEdit application. Nothing I can do except fix the Windows Registry itself, or add those keys/paths to the exclude argument.

Final Tidy

It is important to know when to stop.
One could spend an inordinate amount of time tweaking and refining. Use tools such as Ruff to automate the majority of decision-making.

6. Practical Example: Using the Script

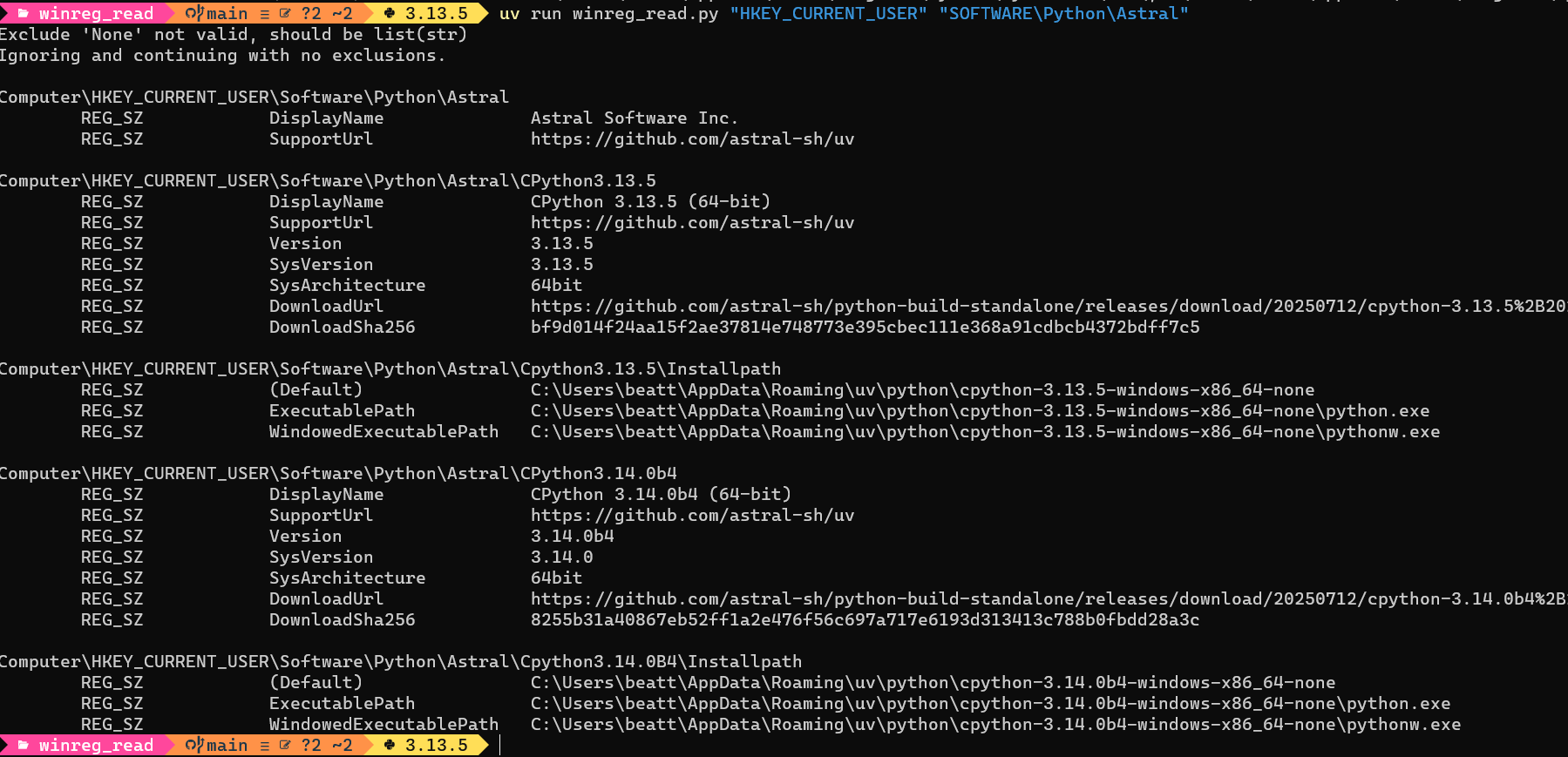

Let us see the script in action. Suppose you want to list all Python installations or inspect a custom registry key. Here is how you might use the script:

Command-line Examples

uv run winreg_read.py "HKEY_CURRENT_USER" "SOFTWARE\Python"
uv run winreg_read.py "HKEY_CURRENT_USER" "SOFTWARE\Python" > HKCU_python.txt

uv run winreg_read.py HKEY_LOCAL_MACHINE SOFTWARE\Microsoft\WindowsUpdate
uv run winreg_read.py HKEY_USERS ''  # Not recommended for all HKey types
uv run winreg_read.py "HKEY_CLASSES_ROOT" "" -e "WOW6432Node" "zune"  # No commas
uv run winreg_read.py "HKEY_CURRENT_CONFIG" "System" -e "System\CurrentControlSet\Enum" "System\CurrentControlSet\SERVICES"  # No commas

Script Examples

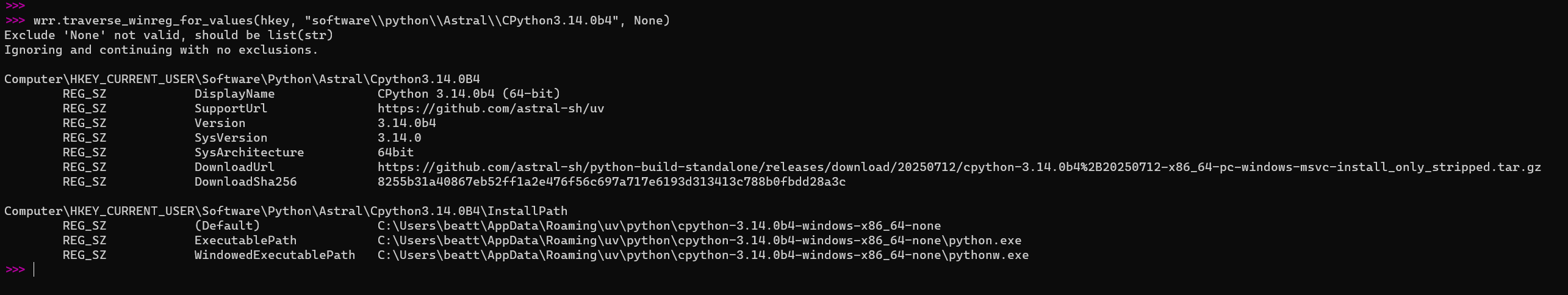

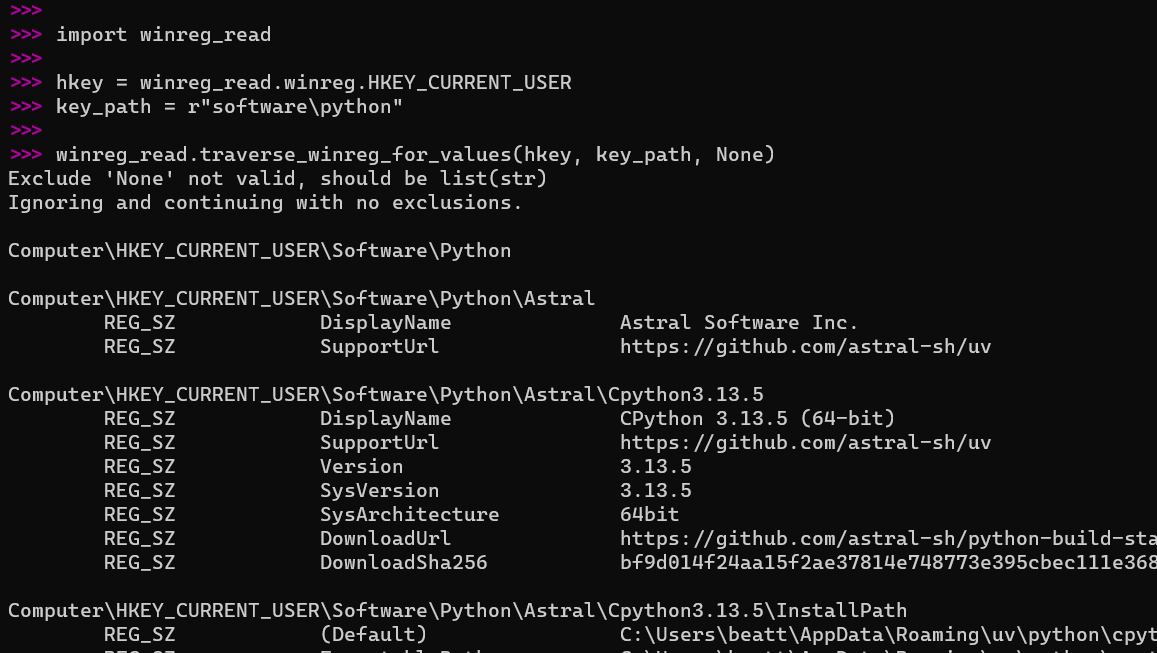

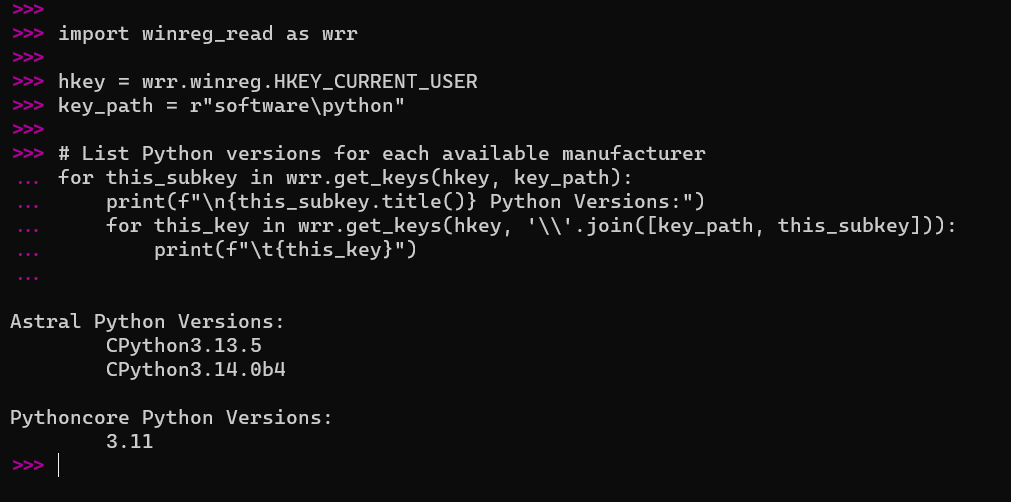

Example 1

Traverse a given HKEY and subkey path:

# import winreg  # Instead, use the import via 'winreg_read' import
import winreg_read

hkey = winreg_read.winreg.HKEY_CURRENT_USER
key_path = r"software\python"

winreg_read.traverse_winreg_for_values(hkey, key_path, None)

Example 2

Display the Python versions available from all vendors for the current user:

import winreg_read as wrr

hkey = wrr.winreg.HKEY_CURRENT_USER
key_path = r"software\python"

# List Python versions for each available manufacturer
for this_subkey in wrr.get_keys(hkey, key_path):
    print(f"\n{this_subkey.title()} Python Versions:")
    for this_key in wrr.get_keys(hkey, '\\'.join([key_path, this_subkey])):
        print(f"\t{this_key}")

To view details of a particular Python version:

wrr.traverse_winreg_for_values(hkey, "software\\python\\Astral\\CPython3.14.0b4", None)

7. Key Takeaways

• Python is progressing rapidly; sample code becomes outdated quickly.
• The Windows Registry is a powerful resource for automation and discovery.
• Python’s winreg module can be used for much more than just reading Python installation information.

Reading a Registry Value

• Use winreg.OpenKey() to open a key.
• Use winreg.QueryValueEx() to read a value.

Writing to the Registry

• Always back up the registry before making changes.
• Use winreg.CreateKey() or winreg.OpenKey() with write access.
• Use winreg.SetValueEx() to set a value.

Deleting a Registry Key or Value

• Use winreg.DeleteKey() or winreg.DeleteValue() for cleanup or automation.

8. Try It Yourself

Try out the script, experiment with different keys, and share your findings or improvements.

• GitHub Repository: winreg_read source code

• Modified PEP 514 Sample Code

• Registry File Analysis Code Snippets

• PEP 514 – Python registration in the Windows registry

• Python Docs: WinReg Module

• Microsoft Information: Windows Registry

Edits to this Post

• 11 Jan 2026: MD linting and AI spelling, grammar checks
